UNIVERSAL POWER CELLS

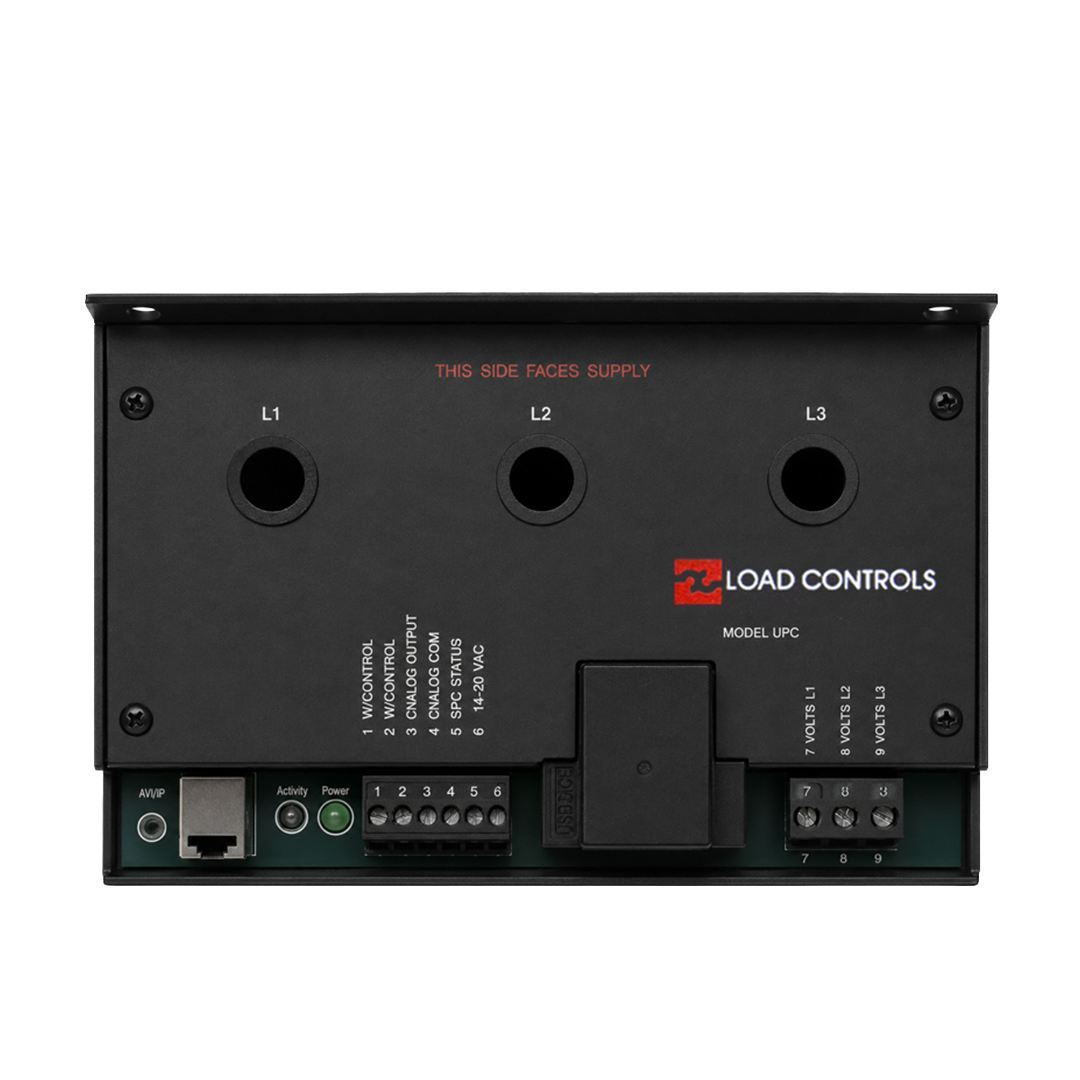

Universal Power Cell

GET VALUABLE INFORMATION
  • Pump or Fan Flow
  • Mixture Viscosity
  • Optimum Feed Rate
  • Tool Condition
  • Beginning of End Process
  • Obstructions
  • Overloads
  • Loss of Load




Model UPC
Adjustable Capacity Power Sensor

Power Monitoring Made Easy

  • Monitor motor power with DUAL analog outputs for meters, programmable controllers, chart recorders
  • Adjust full scale to match your motor – Max. sensitivity from small motors clear up to 150HP
  • Self-contained – No PTs or CTs to install
  • Versatile – Works on both Fixed and Variable Frequency, even Single Phase and DC

SPECIAL PURPOSE UNIVERSAL POWER CELLS

UPC-230
230 Volt Power Supply Input

UPC-FR
Fast Response Unversal Power Cell

  • 0.050 Second Response Time
  • Ideal for Machine Tool Monitoring
  • Also used together with “V” Series Load Control



UPC-LB
Larger Holes

  • For wires up to 0.9″ (23 mm) diameter
  • Nearly 50% more area than a standard UPC



UPC-KWH
Energy Measuring Universal Power Cell

  • Accumulates Kilowatt Hours, Kilowatt Minutes, Kilowatt Seconds
  • Accumulates total power into the mixing process for consistent batches
  • Accumulates power–indicative of throughput

APPLICATION NOTES

PDF-Icon Profiling a Process

PDF-Icon Sensing Viscosity Change By Measuring Power

REFERENCE TOOLS

PDF-Icon Data Sheet: UPCs and Special Purpose UPCs

Installation: Model UPC

PUMP LOAD CONTROLS

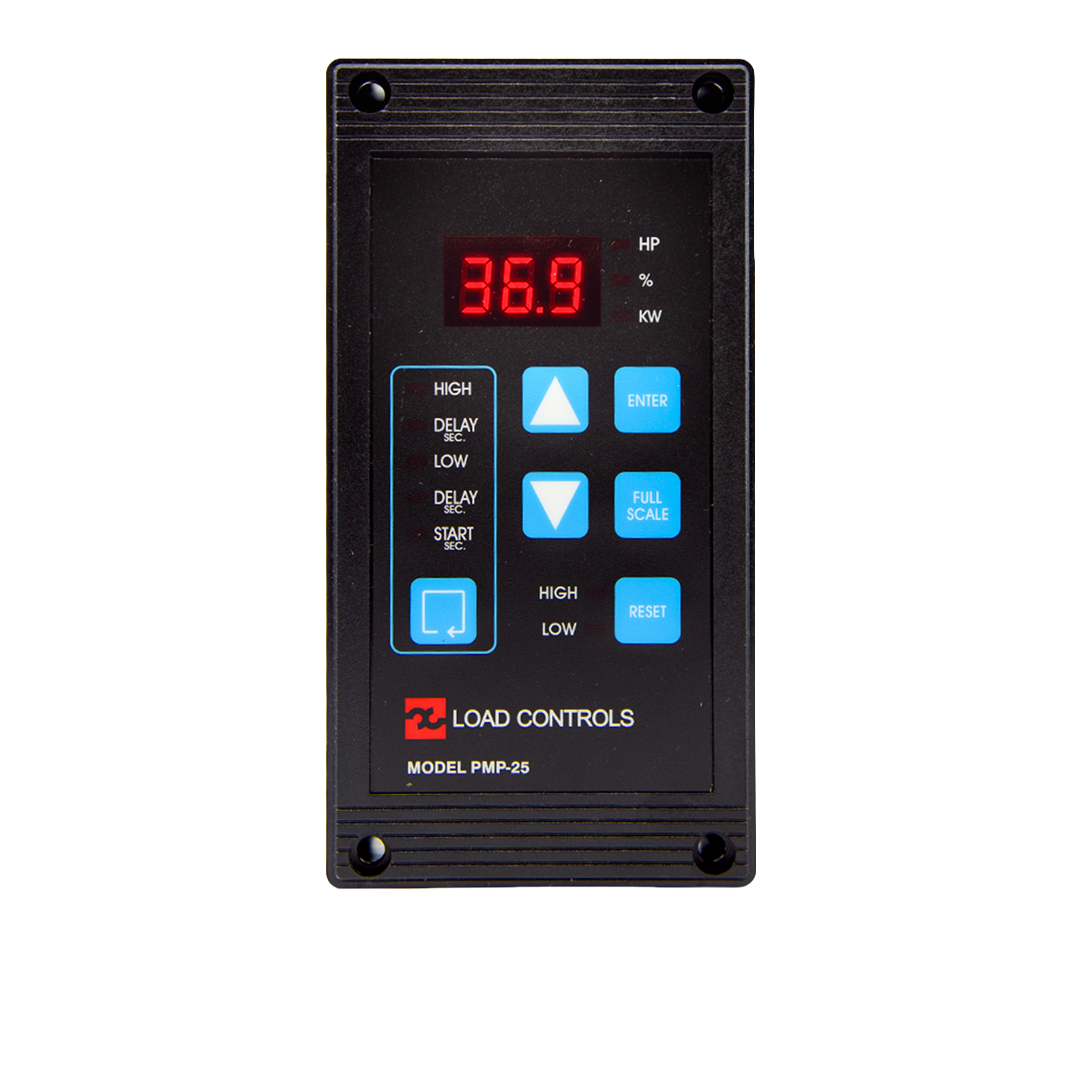

Pump Load Control

MONITOR TRUE MOTOR POWER

PMP-25
Compact Digital Pump Load Control

Detects Loss of Load

  • Dry Running
  • No Prime
  • Cavitation

Detects Overloads

  • Jammed Impeller
  • Bad Bearings



Instructional Videos

*Setting the Full Scale of the PMP-25

*Setting the Trip Points of the PMP-25

*PMP-25 Relay Wiring

WHITE PAPERS

PDF-Icon Using Power Sensing to Monitor and Protect Pumps

APPLICATION NOTES

PDF-Icon Monitoring Pumps

REFERENCE TOOLS

PDF-Icon Data Sheet: PMP-25

Installation: PMP-25 & PMP-1701

FAST RESPONSE COMPACT DIGITAL LOAD CONTROLS

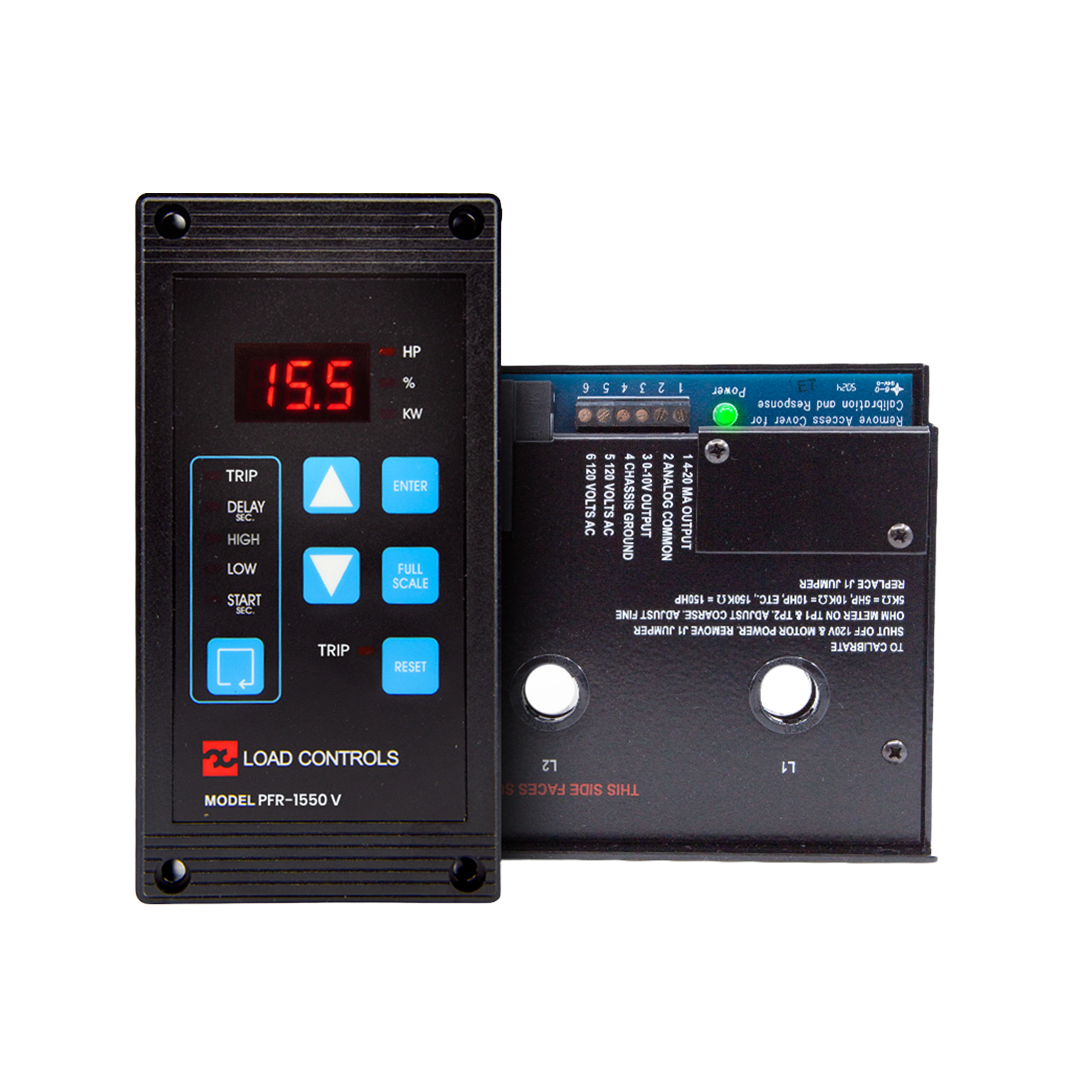

Digital Load Control PFR-1550

PROTECT VALUABLE EQUIPMENT FROM PROBLEMS AND DAMAGE
  • Overloads
  • Jams
  • Obstructions
  • Sudden Load Change
    (Conveyors and Indexing Machine)
  • Loss of Load
  • Missing Tools
  • Misplaced Parts


APPLICATION NOTES

PDF-Icon Jam Detection on Conveyors and Indexing Machines

REFERENCE TOOLS

PDF-Icon Data Sheet: Fast Response Load Controls

PDF-Icon Installation: PFR-1550

PDF-Icon Installation: ROC-50

PDF-Icon Installation: PFR-1750

PDF-Icon Installation: CR-150

COMPACT LOW-COST POWER SENSOR

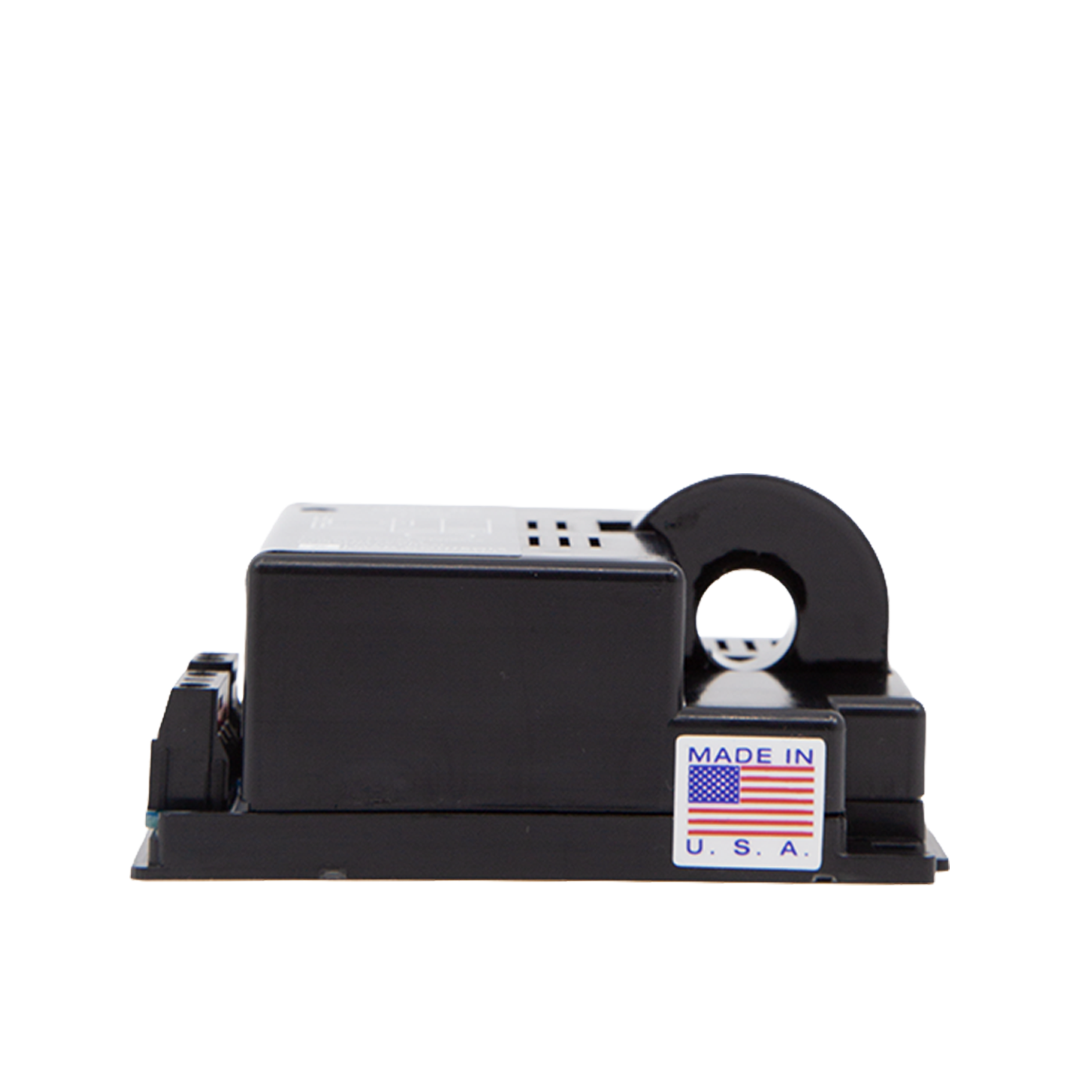

Compact Motor Power Sensor

Model TP-2
Compact Motor Power Sensor

  • Ideal for small enclosure
  • True motor power
  • Low-cost

REFERENCE TOOLS

Data Sheet/Installation

POWER CELLS - For Machine Tool Monitoring or Large Loads

PH-3A

2PH-1000

EXTREMELY FAST POWER MONITORING

PH-3A
Power Cell Monitor

  • Ideal for Machine Tool Monitoring
  • Self-contained – No PTs or CTs to install





PH-1000 – The Big Iron
Power Cell Monitor

  • Monitor motors up to 1000HP
  • No PTs or CTs to install
  • 1-3/4″ conductor openings

REFERENCE TOOLS

PDF-Icon Data Sheet: Power Cells

PDF-Icon Installation: PH-3A and PH-1000

PORTABLE POWER CELL

Portable Power Cell

Model PPC-3
Portable Power Cell

  • Ideal for Machine Analysis and Process Development

REFERENCE TOOLS

PDF-Icon Data Sheet: Portable Power Cell

Installation: PPC-3

METERS

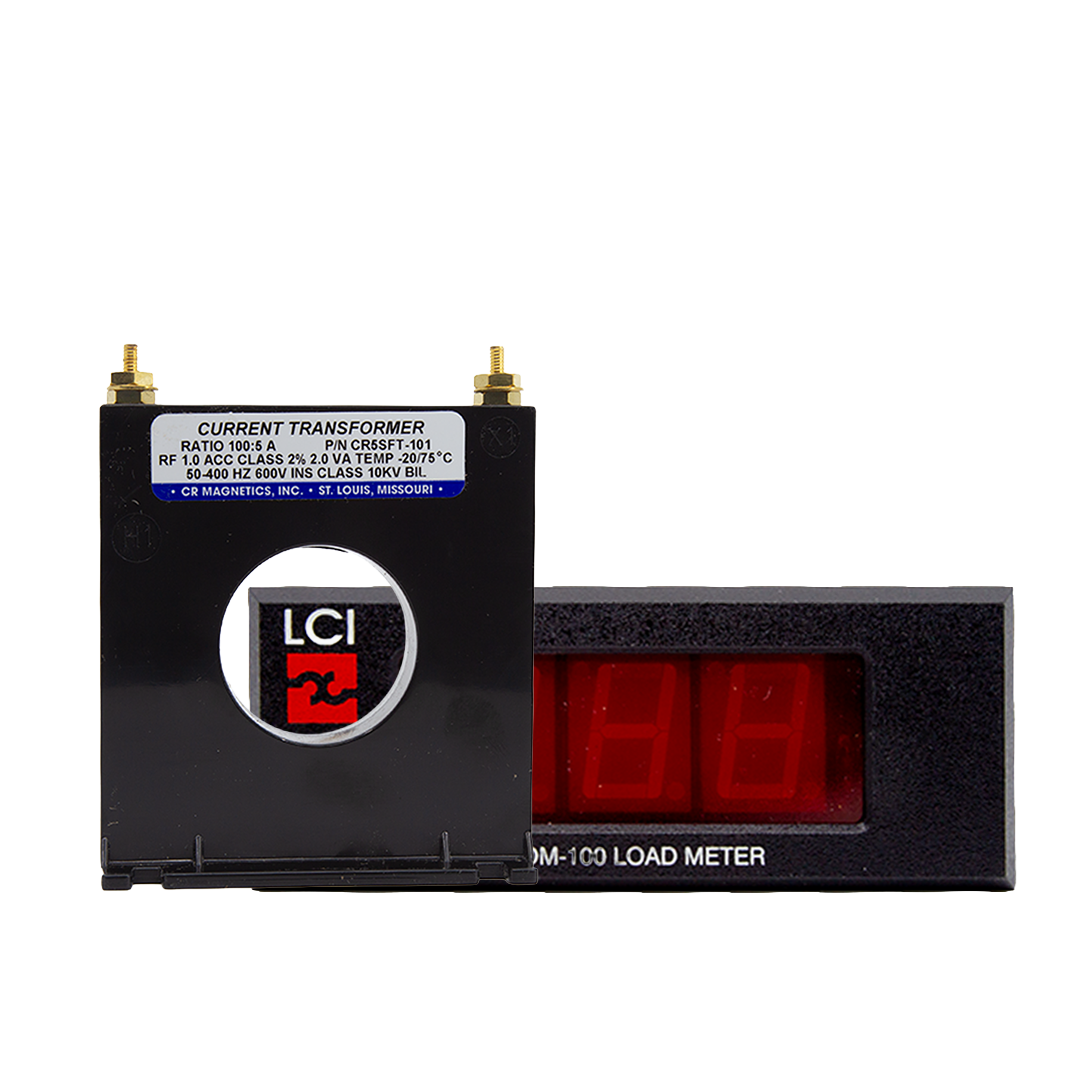

DM-100 load meter

METERS TO GO WITH POWER CELLS
OR LOAD CONTROLS

PLM Analog Meter

DM-100 Digital Load Meter

KWH-3 Digital Energy Meter

REFERENCE TOOLS

PDF-Icon Data Sheet: Meters

PDF-Icon Installation: DM-100

PDF-Icon Installation: KWH-3 and UPC-KWH

CURRENT SENSORS

AMP-420A-2008

Digital Load Control PFR-1550

Model AMP 420A
Loop Powered Current Transducer

  • Ideal for small or big motors
  • Convenient 4-20 milliamp analog output







CR-150
Fast Response Current Sensing Load Control

  • Adjustable set point
  • Relay output
  • Analog output

REFERENCE TOOLS

PDF-Icon Data Sheet/Installation: AMP 420A

PDF-Icon Installation: CR-150

Load Controls for Variable Frequency Drives / Other Products
Get Valuable Feedback By Monitoring Motor Power
